Advanced XBee®-Based Methane Emissions Monitoring for Hydrocarbon Exploration

Introduction

In the face of increasing environmental regulations, hydrocarbon exploration companies are tasked with managing methane emissions effectively. Methane, a powerful greenhouse gas, often leaks from wellhead pads, pipelines, and storage tanks, posing significant environmental risks. Install IoT was contracted by a leading exploration company to develop an advanced, real-time methane monitoring system capable of operating in remote areas without cellular coverage.

Background

The exploration company required a reliable monitoring solution to detect and localize methane emissions from various equipment at wellhead pads. This system needed to operate continuously, providing real-time data every second to meet regulatory standards. The initial approach leveraged LoRaWAN technology due to its long-range capabilities, but the system encountered significant issues with packet loss, especially at the higher reporting frequency required by the customer. This led to the decision to adopt a ZigBee mesh network for the project, which provided a more robust and scalable solution.

Challenges

The project presented several key challenges:

Accurate Detection and Localization:

The system had to precisely identify the location of methane emissions from multiple sources within a wellhead pad, including storage tanks, pipelines, and other equipment.

High Throughput:

The client required real-time data transmission every second, with near-perfect data reliability. LoRaWAN's performance suffered at high data frequencies, with throughput dropping to as low as 60%, which necessitated finding an alternative solution.

No Cellular Signal:

The wellhead pads were located in remote areas with no cellular coverage. The system had to be self-reliant and capable of forming a robust communication network without traditional connectivity.

Scalability:

The company required a solution that could be easily scaled across multiple wellhead pads, with minimal disruption and easy integration of additional sensors.

Solutions

Install IoT designed an advanced methane emissions monitoring system using XBee® mesh technology, which overcame the limitations of previous approaches. Key components of the solution included:

Methane Detection Sensors:

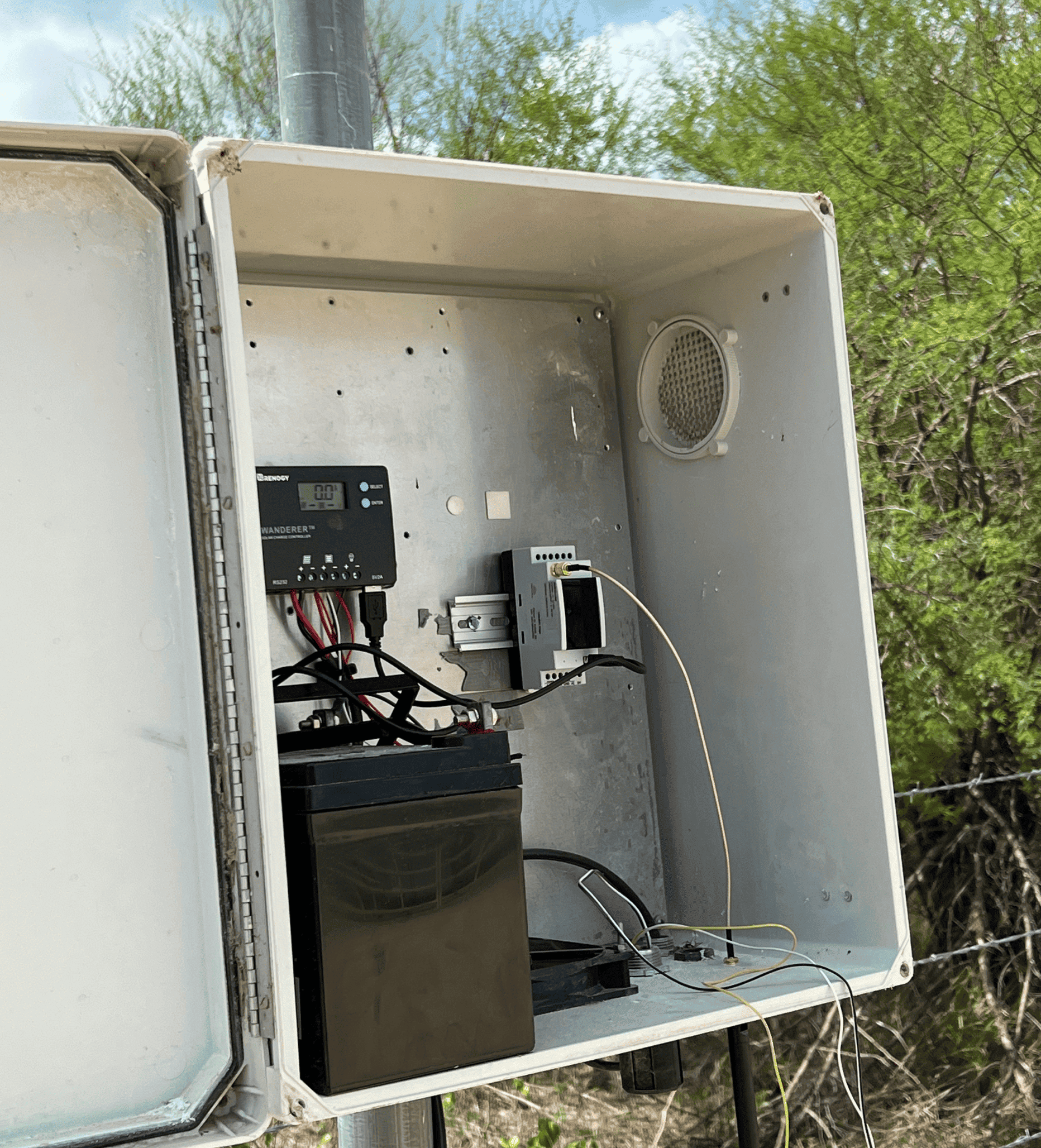

Four Leo-L84 XBee edge modules equipped with sensitive methane detection sensors were strategically placed at the four corners of the wellhead pad. These sensors continuously measured methane concentrations in parts per million (ppm) and transmitted the data across the mesh network.

Wind Speed and Environmental Sensors:

The system also integrated anemometers to monitor wind speed and direction. This data was crucial for modeling the dispersion of methane and helping pinpoint the exact source of emissions. The anemometers were connected directly to the Leo-L84 XBee modules to ensure synchronized environmental data.

ZigBee Mesh Network:

The core of the solution was the ZigBee mesh network, operating at 2.4 GHz. Unlike LoRaWAN’s star topology, which relies on a central gateway, the ZigBee mesh allowed each node to communicate with one another, creating a self-healing network. In this design, one of the nodes in the mesh network automatically assumed the role of a gateway, dynamically chosen based on the network’s state. This avoided the need for a dedicated gateway device, reducing complexity and adding resilience. If any node failed, the network would automatically reroute data through alternative paths, maintaining the integrity of the system.

Edge Processing at the Sensor Level:

Each XBee node performed local edge processing, converting the 4-20mA analog signal from the methane sensors into digital data before sending it through the network. This reduced latency and ensured that only actionable data was transmitted.

Machine Learning Integration:

Although Install IoT did not directly implement the machine learning algorithms, the customer's in-house models processed the methane and environmental data. These algorithms used the real-time data to predict methane dispersion patterns and determine the likely source of emissions. The models also created real-time heat maps, which allowed the operators to quickly identify and address emission points.

Results

The XBee-based methane monitoring solution met and exceeded the exploration company’s requirements:

High Throughput and Low Latency:

By leveraging the ZigBee mesh network, the system achieved 98-99% data throughput, a significant improvement over the 60-70% observed with LoRaWAN. This allowed for reliable, real-time data transmission every second, ensuring immediate detection of any methane emissions.

Resilient, Self-Healing Network:

The mesh topology allowed for automatic rerouting of data if any node failed. This self-healing capability made the network highly reliable, particularly in remote, harsh environments where traditional communication infrastructure was unavailable.

Accurate Emission Detection and Source Identification:

The integration of methane sensors with wind data enabled the system to accurately model methane dispersion patterns and determine the source of leaks. This enhanced the company's ability to respond swiftly to environmental risks.

Scalability:

The modular nature of the XBee mesh network made it easy to scale the solution to additional wellhead pads. The system could accommodate more sensors with minimal configuration changes, ensuring future growth without major reinvestment.

In conclusion, the XBee mesh-based methane monitoring system provided a highly reliable, real-time solution for managing methane emissions at remote wellhead pads. The system’s ability to deliver near-perfect data throughput, coupled with its scalability and resilience, allowed the exploration company to meet regulatory requirements while minimizing environmental impact. This case study demonstrates the effectiveness of combining XBee mesh technology with real-time data analysis in solving complex environmental monitoring challenges.
